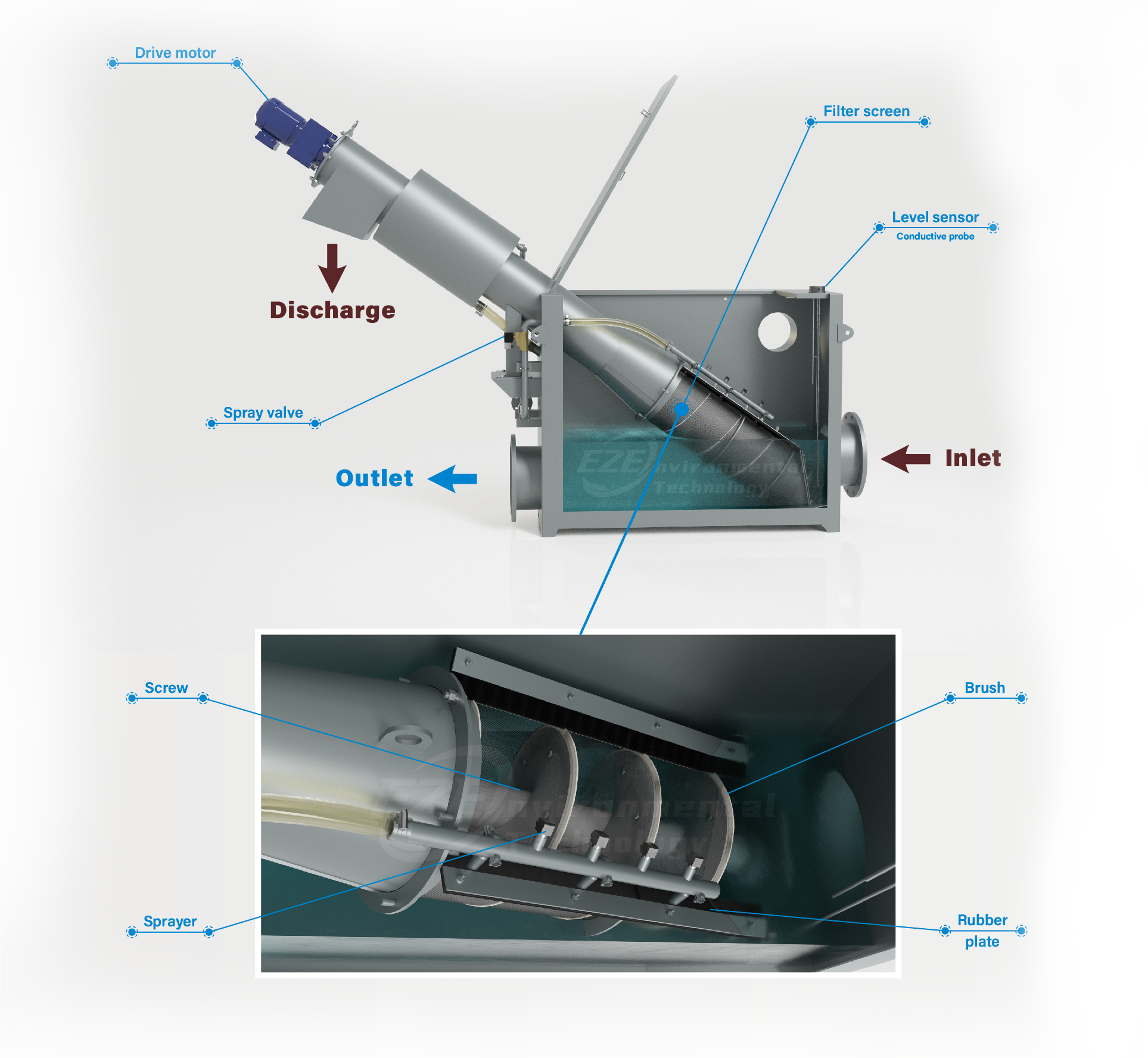

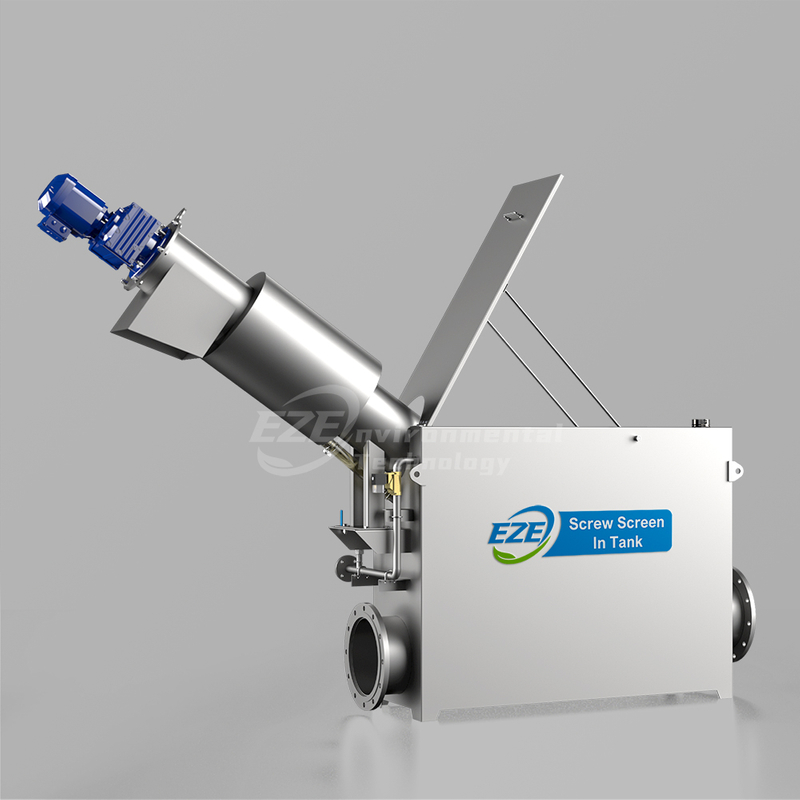

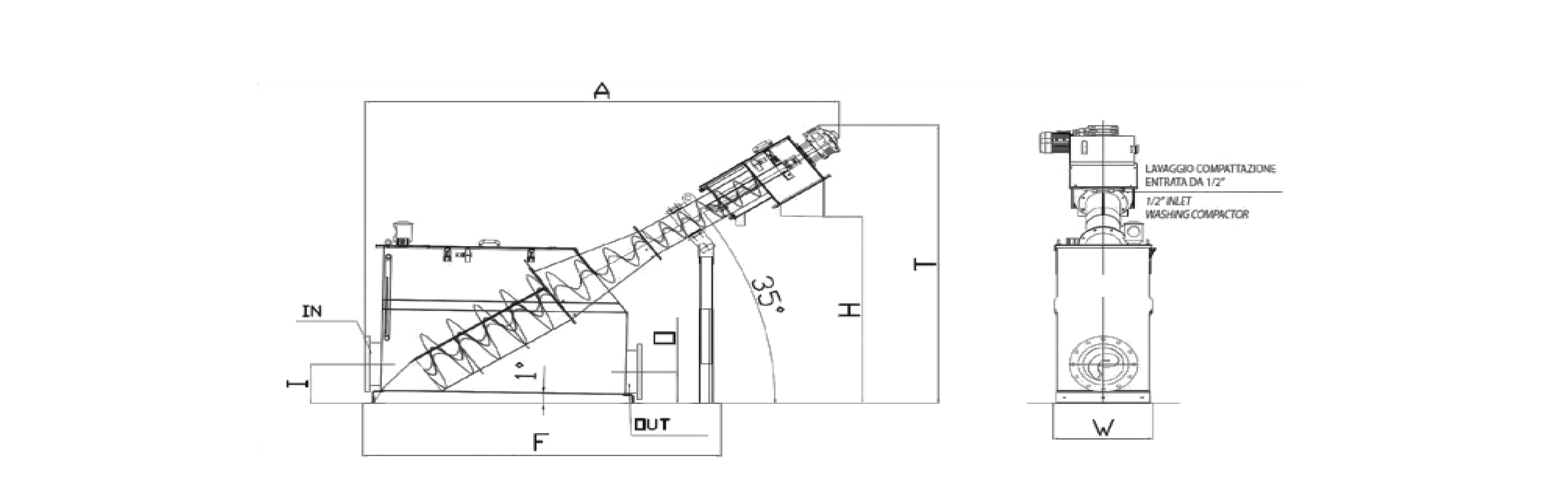

This packaged screw screen provides primary treatment for untreated sewage and a wide range of industrial wastewater. The screw screen is equipped with a stainless steel tank to allow installation where a concrete channel is not available. The tank is complete with flanged inlet and outlet pipe stubs.

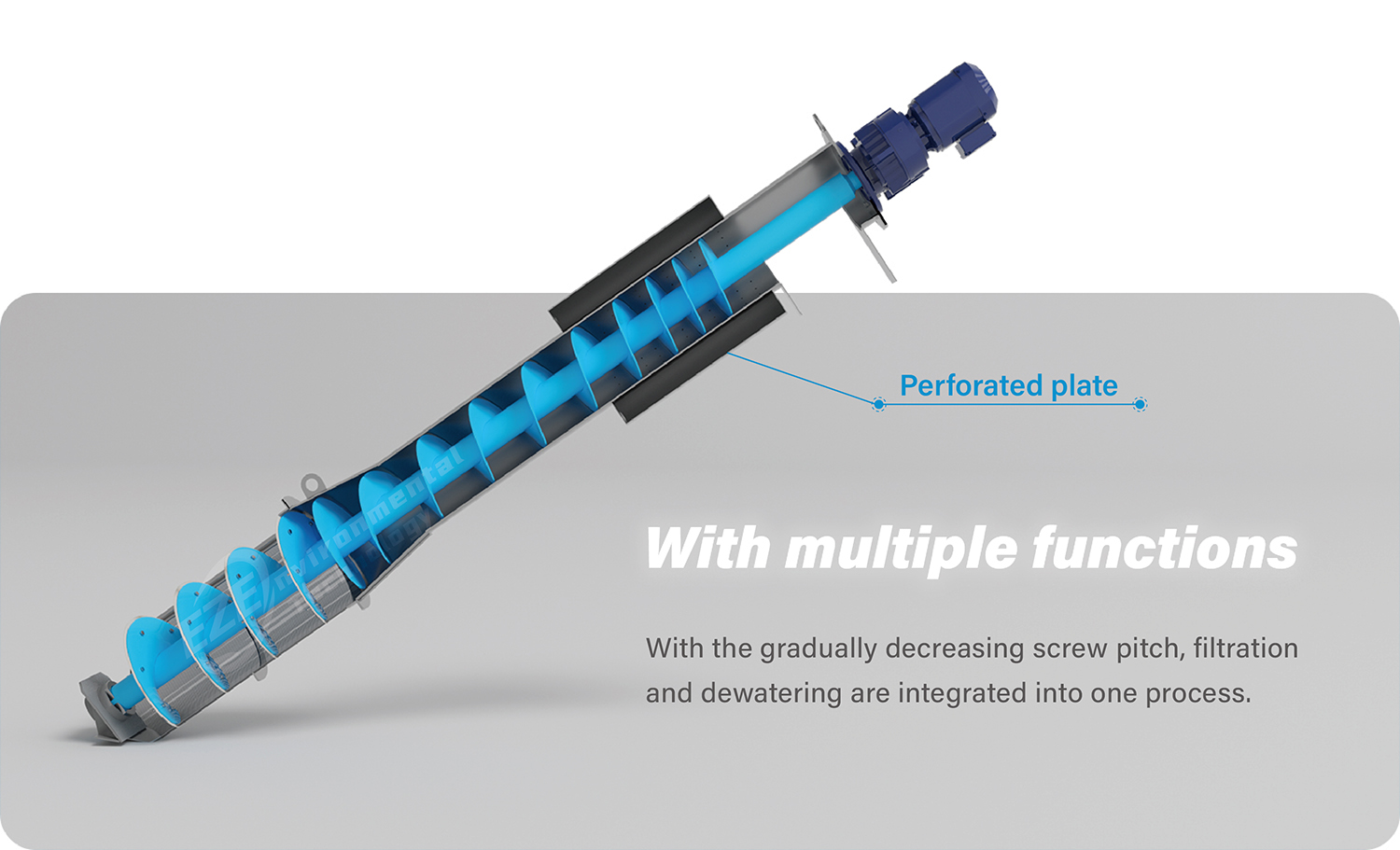

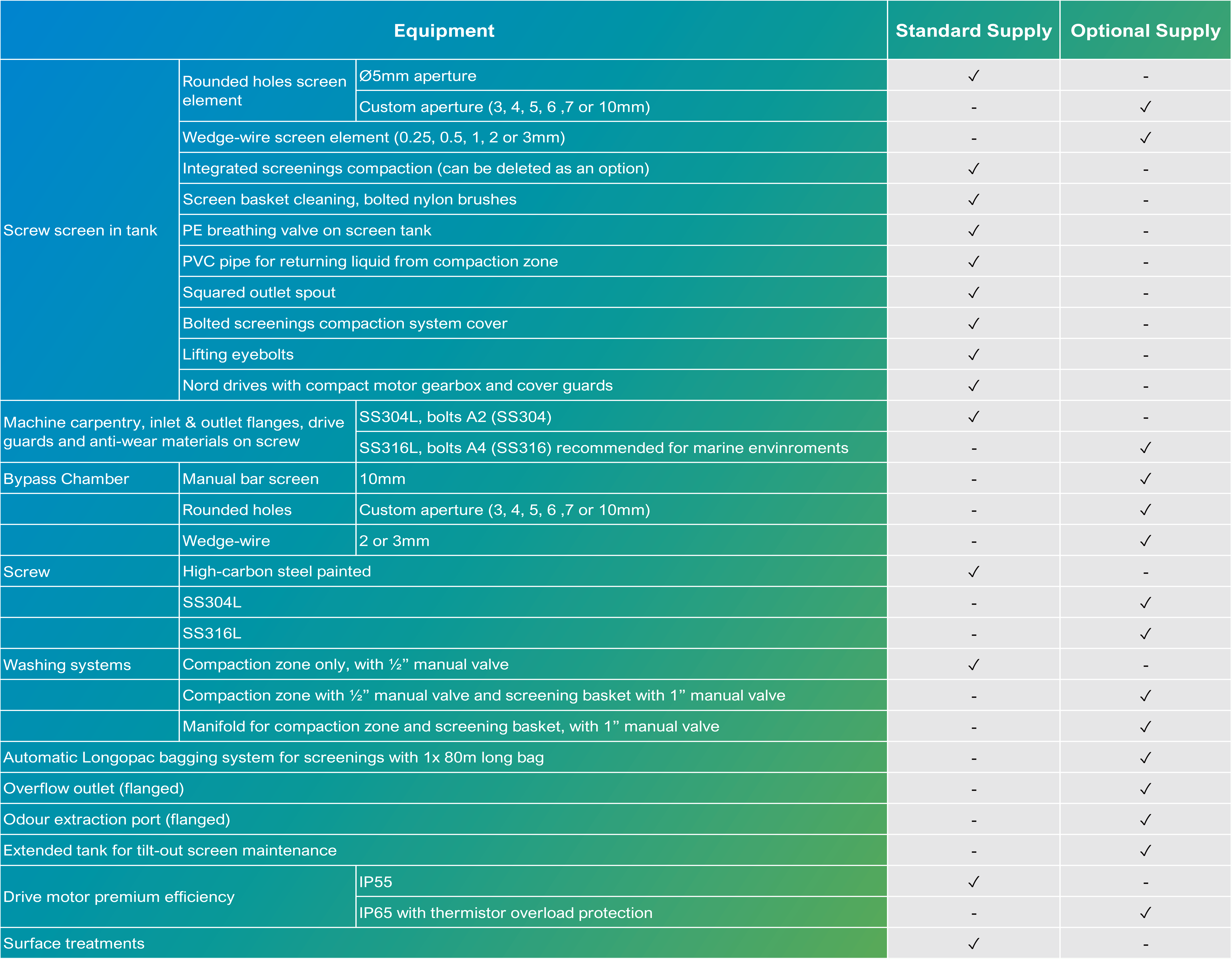

The tank can be fitted with an optional bypass chamber (as contingency if the main screen overflows) fitted with a manually cleaned bar screen. The system includes screening compaction at the end of the conveying section of the screw.

Stainless steel parts: stripping with acid solution, passivation with glass particles, final surfaces cleaning with anti-dust oil. Carbon steel parts: andblasting SA 2.5 for external anti-rust paint RAL 5015
